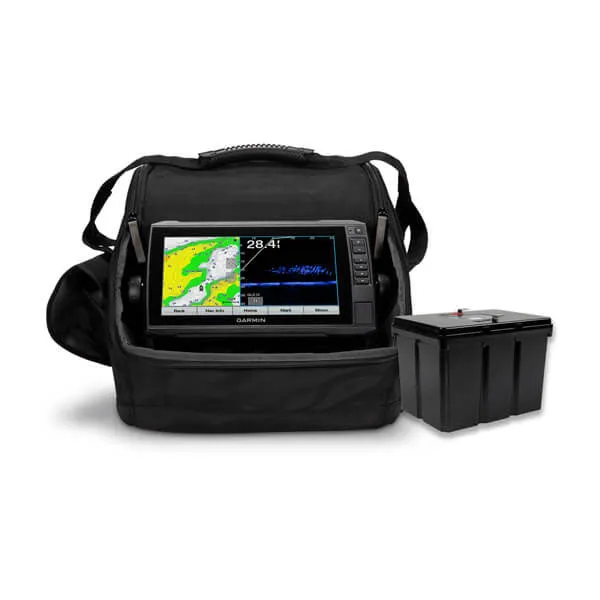

ECHOMAP™ UHD 93sv Ice Fishing Bundle
A PREMIUM FISHING EXPERIENCE
Drill fewer holes and catch more fish with the LiveScope Ice Fishing Bundle, which includes an ECHOMAP™ UHD 93sv combo, Panoptix LiveScope™ sonar transducer, and lead acid battery.
Hit your limit with the power of Panoptix Livescope, with 2 sonar modes.
If it’s out there, you’ll know. Real-time sonar lets you see up to 200’ in any direction.
Only the fish will weigh you down. This bundle comes with a lightweight lithium battery.
Keep an eye on your jig and what it attracts with LiveScope™ Down sonar.
ECHOMAP UHD 93sv LI Ice Fishing Specs
| ✔ | TIDE TABLES |
| ✔ | BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
| ✔ | WATER TEMPERATURE LOG AND GRAPH |
| ✔ | SONAR RECORDING |
| ✔ | SONAR HISTORY REWIND |
| ✔ | NMEA 2000® COMPATIBLE |
- Waypoints: 5,000
- Track Log: 50,000 points; 50 saved tracks
- Routes: 100
- Frequencies Supported: 530 - 1,100 kHz
- Maximum Depth: Down and Forward: 200’ (61.0 m)
- Transducer Pin Number: 21-pin
- Physical Dimensions: 13.8" × 12.2" × 13.0" (35 × 31 × 33 cm)
- Display Size: 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
- Display Resolution: 800 x 480 pixels
- Display Type: WVGA color
- Weight: 19.4 lb (8.8 kg)
- Water Rating: IPX7
- Power Consumption: 6.2 W
- Antenna: Internal or external over NMEA 2000
- Transmit Power: 500 W (RMS)
- Receiver: 5 Hz
- Garmin Marine Network Ports: 1 Panoptix™ port
- Preloaded Maps: LakeVü g3 (inland maps)
- Accepted Data Cards: 1 microSD™ card; 32 GB maximum card size
Bundle Includes: ECHOMAP™ UHD 93sv chartplotter, Panoptix™ LiveScope System, Panoptix ice fishing mount, Tilt/swivel mount, Power cable, Documentation, Bag with handle, Lead-acid battery, and Battery charger.
ECHOMAP UHD 93sv LI Ice Fishing Features
ECHOMAP UHD
Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.
LIVESCOPE DOWN
LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.
BUILT-IN FLASHER
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
TWO MODES, ONE TRANSDUCER
Adapt your fishing technique with a Panoptix LiveScope system, which offers 2 scanning sonar modes. The bundle also includes a lithium battery, charger, and swivel pole mount.
LAKEVÜ G3 MAPS
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.

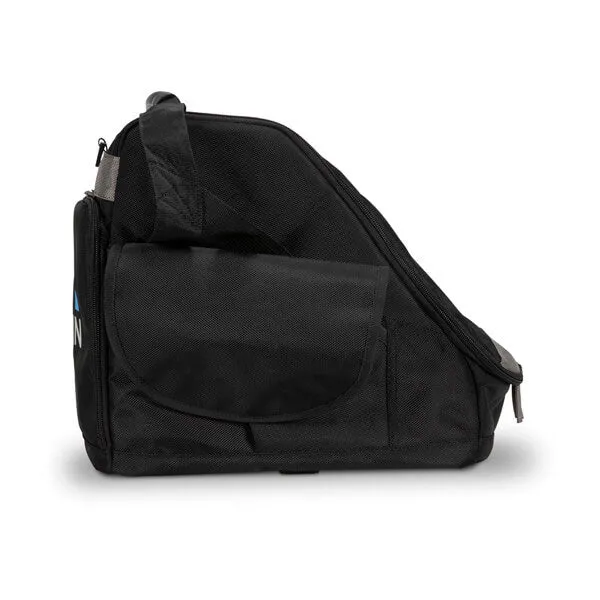

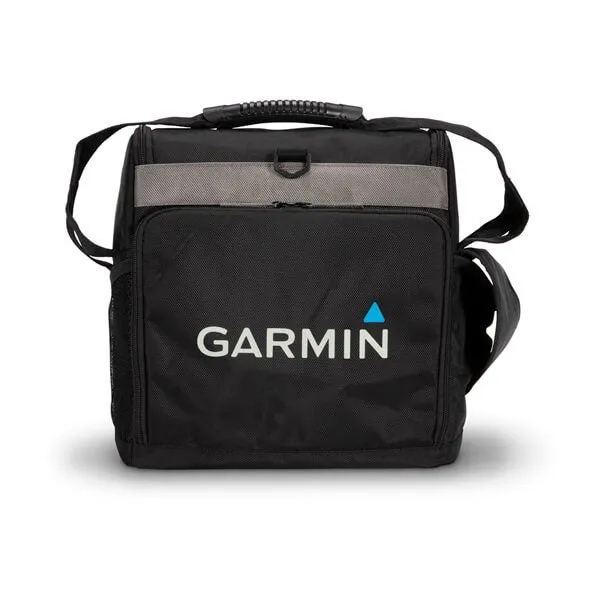

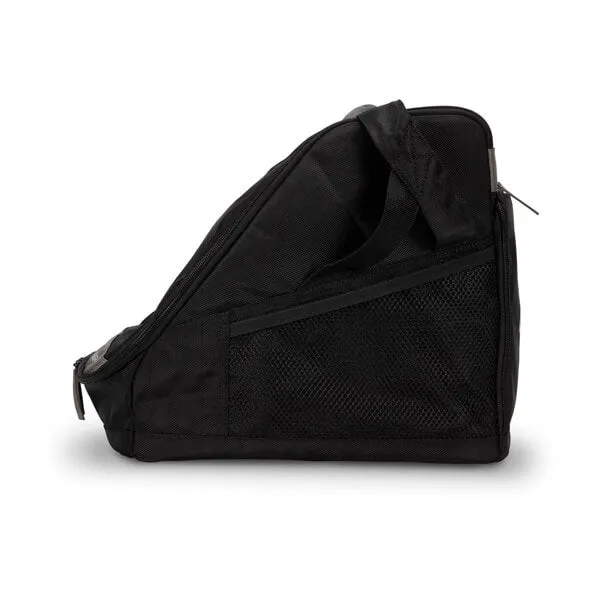

CARRYING CASE
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
LIVESCOPE FORWARD
LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
CUSTOM COMBOS
You can create custom pages that combine Panoptix™ sonar, flasher, and map on your display.
LEAD ACID BATTERY
Fish even longer with a lightweight battery that won’t weigh you down on the ice.
